Bistook Energy Pulse Pillar – Portable Fast Charging Power Bank, 31000mAh Large Capacity, Supports Multiple Protocols, Allowed on Airplanes and High-Speed Trains.

Description

“Energy Pulse Pillar” is a portable fast-charging power bank with detachable and replaceable batteries. Before the product is launched, multiple inspections have been completed. The test reports include GB4943/GB/T35590-2017/CE/FCC/ROHS. The shell is made of 6063 series aluminum alloy and processed by CNC. The appearance is anodized and sandblasted. It has two 0.5W white lights of 2835 specification and is equipped with two 15-degree lamp cups made of PC plastic material. The main control chip is Zhirong SW6208 with a peak power of 20W. It is mainly used in outdoor scenarios such as business trips, camping, traveling, live streaming, and photography. It is suitable for charging mobile phones and tablets and supports many protocols. It is standard equipped with two USB ports, one USB-A port and one USB-C port. The digital display shows the remaining power, and the fast charging logo is clearly visible. “Energy Pulse Pillar” has small volume and large capacity! It is equipped with a new ternary lithium automotive-grade battery cell of EVE 46950. The battery cell capacity is 31000mAh (3.7V/114.7Wh), and the rated capacity is as high as 21000mAh. Energy Pulse Pillar, light up your life!

2、Interface description of “Energy Pulse Pillar”:

1. Bidirectional (input/output) interface: USB-C.
2. Unidirectional (output) interface: USB-A.

3、Power description of “Energy Pulse Pillar” interface:

1. USB-C1 input: 5V/3A, 9V/2.2A, 12V/1.5A (20W Max).
2. USB-C1 output: 5V/3A, 9V/2.2A, 12V/1.5A (20W Max).
3. USB-A output: 5V/3A, 9V/2A, 12V/1.5A (18W Max) (Under SCP protocol, peak power is 25W).

4、Battery description of “Energy Pulse Pillar”:

1. Product model: XM34469.

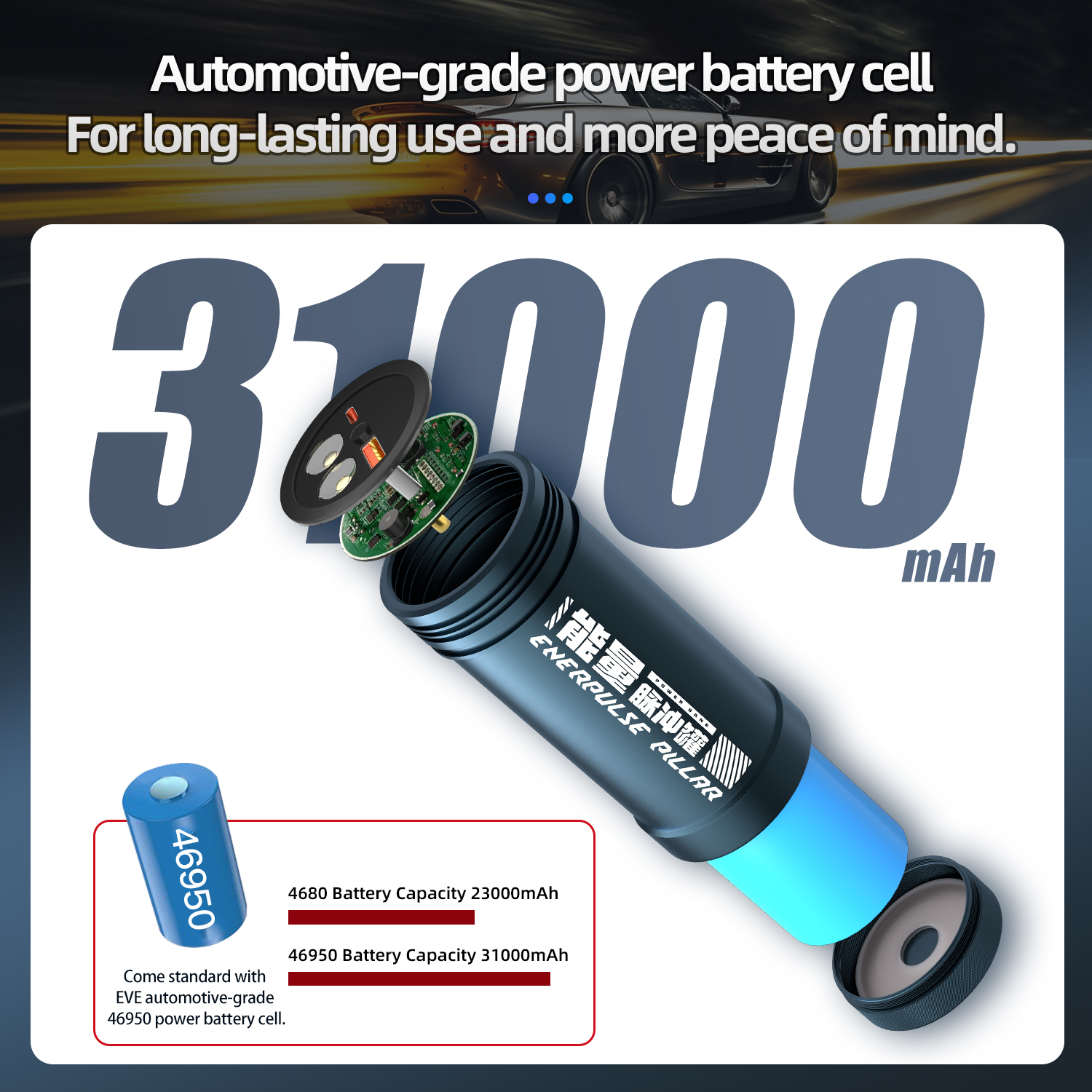

2. Battery: EVE 46950 battery (used battery from disassembled vehicle).
3. Battery life: Can be cycled about 1000 times.
4. Battery capacity: 31000mAh (3.7V/114.7Wh).
5. Rated capacity: 21000mAh (5V/3A).
6. Charging time from 0% to 99%: Approximately ≥7.5 hours.

5、Features of “Energy Pulse Pillar”:

1. Volume: Using 46950 high-density battery cell reduces the volume by 30% compared to other products with the same capacity.
2. Power: With the support of Zhirong SW6208, the power is increased by 10% compared to similar products.
3. Heat dissipation: The all-aluminum alloy shell reduces heat by 40% compared to similar products.

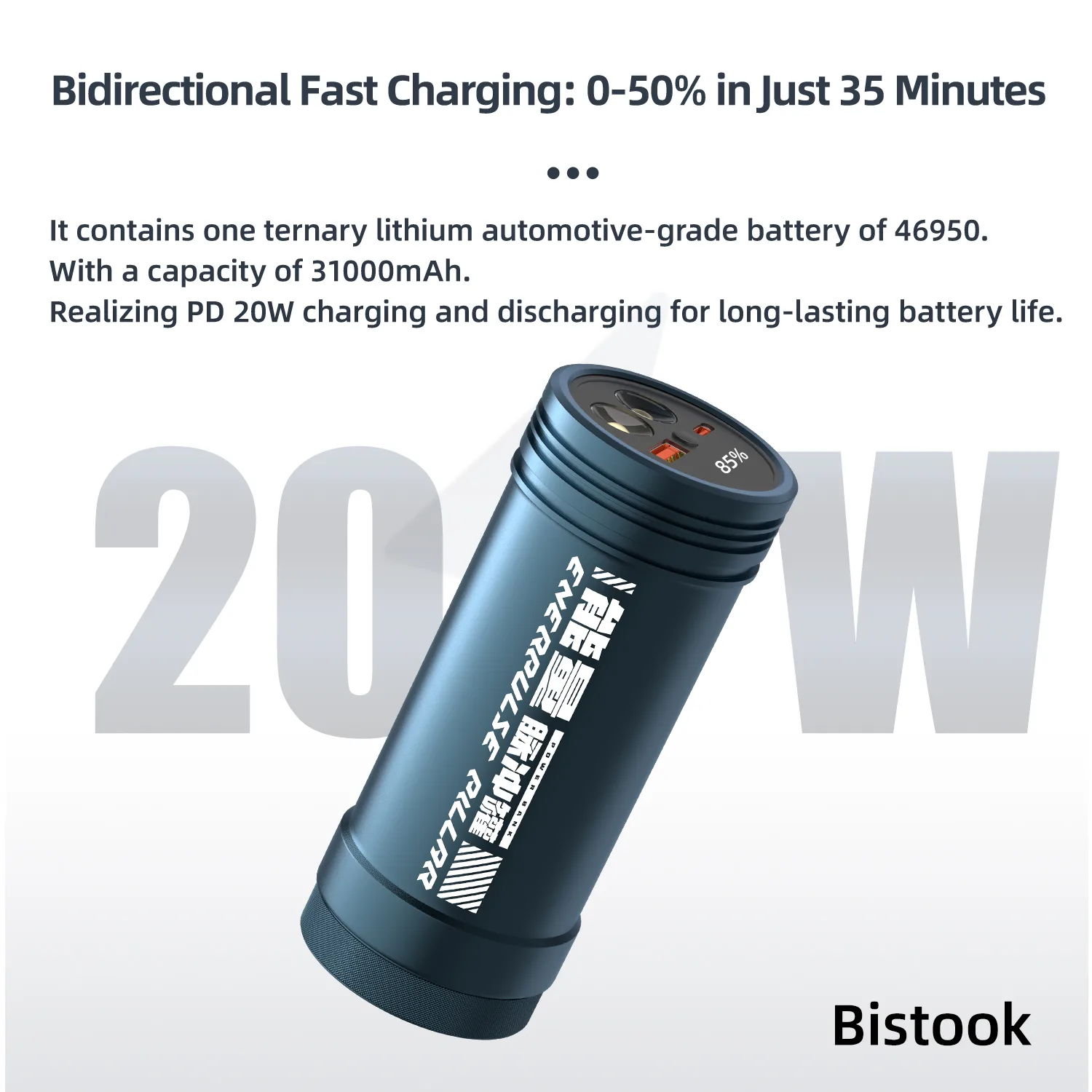

4. Dual-port design. USB-C supports input and output of 20W (Max). USB-A output interface (18W Max) (peak power is 25W under SCP protocol).

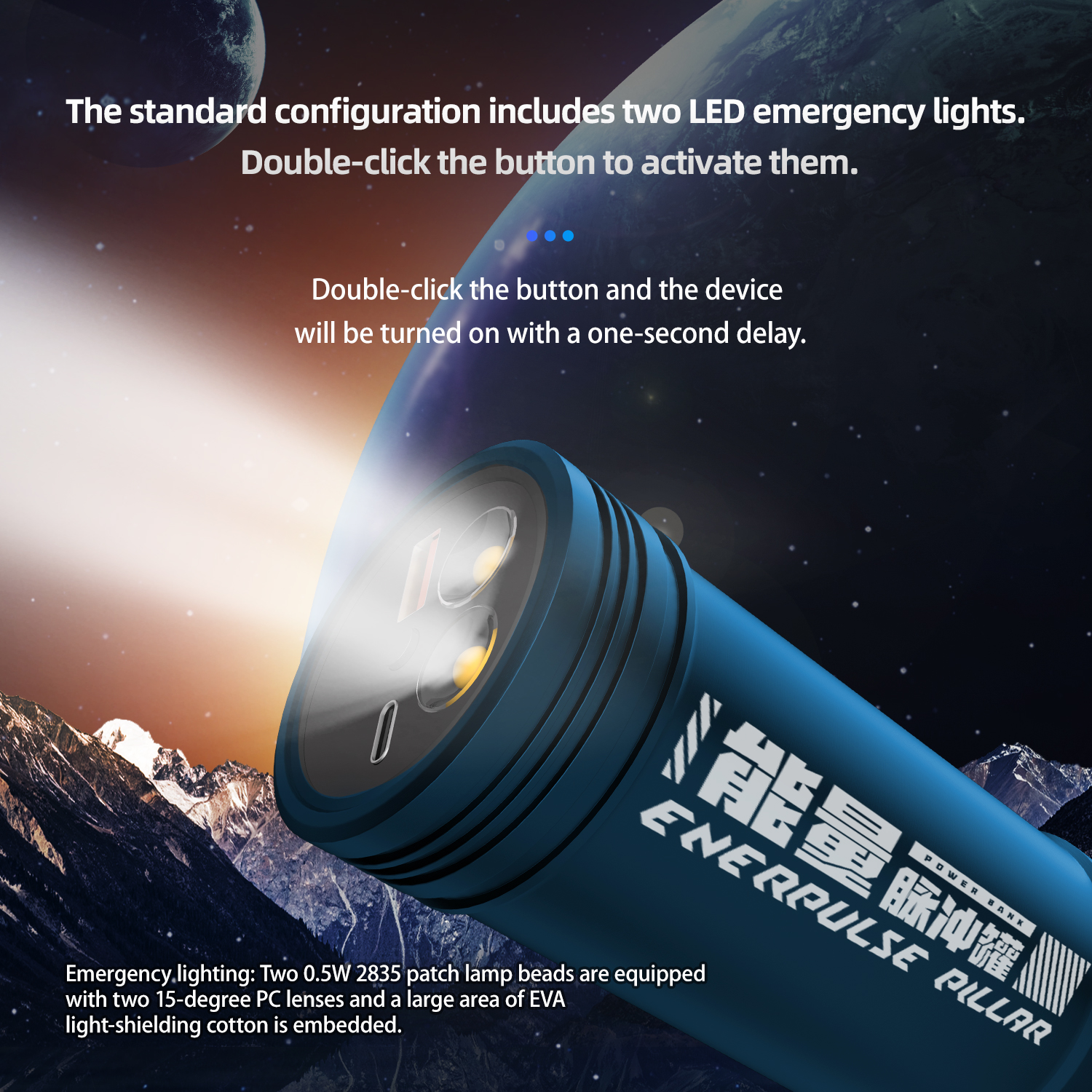

5. Two 0.5W white lights of 2835 specification are equipped with two 15-degree lamp cups made of PC plastic material.
6. There are two M3 gold-plated copper posts on the negative pole and one M3 gold-plated spring pin on the positive pole. The internal spring is gold-plated with low internal resistance and can carry 6A current, greatly reducing the risk of poor contact.

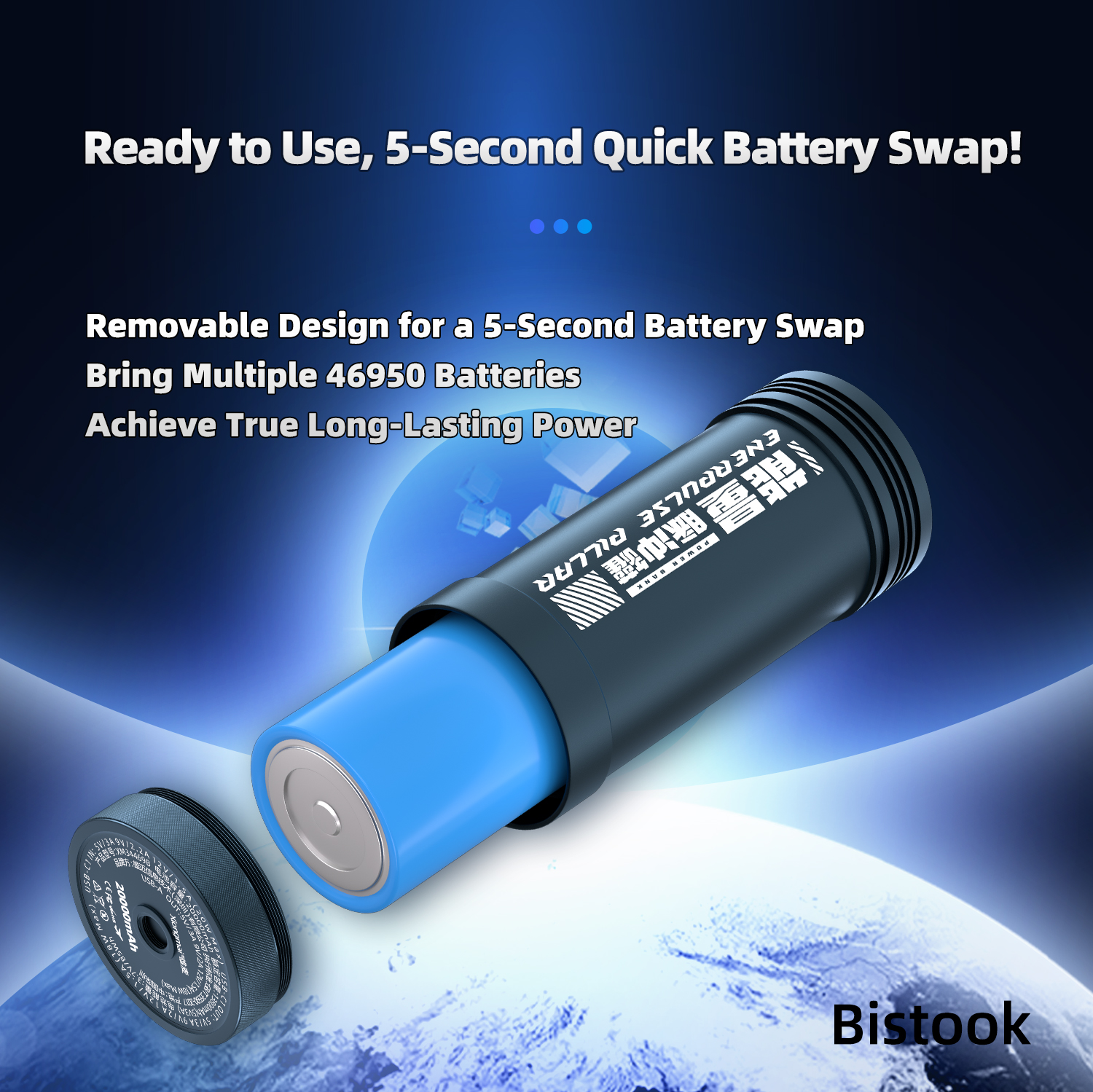

7. Detachable structural design makes it convenient to replace the battery without welding or screwing.
8. With the support of digital tube, the remaining power and fast charging logo are clearly visible.
9. The bottom has an international standard 1/4 universal hole and can be equipped with mobile phones, cameras, gimbal brackets, etc.
10. All-aluminum alloy shell has better heat dissipation. The optimized and thickened aluminum alloy barrel structure and thickness make it more durable.
11. Built-in coulomb meter (automatic power learning). The digital tube displays the power for accurate management.
12. The main control step-up/down chip integrates real-time internal temperature monitoring for safer charging and discharging.
13. Supports multiple protocols such as PD/PPS/FIXED/AFC/FCP/QC/SCP with stronger compatibility.

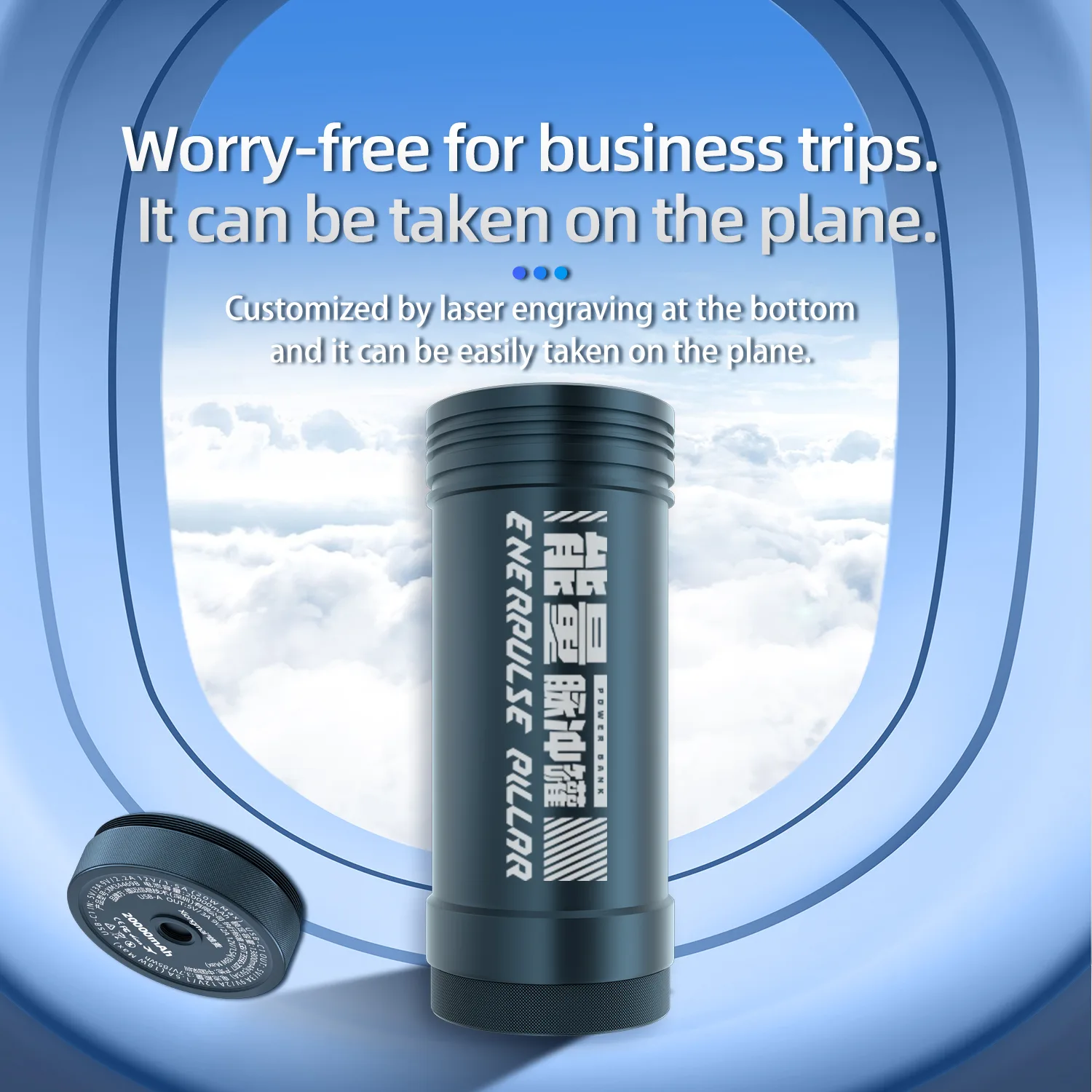

14. The product has been tested by relevant institutions and has test reports, making it safer. The laser engraving is clear and it can be taken on airplanes and high-speed trains.

6、Parameters of “Energy Pulse Pillar”:

1. Name: EnerPulse Pillar [No. 2] (fast-charging power bank).
2. Product model: XM34469B.
3. Interface type: 1 USB-C, 1 USB-A.
4. Battery capacity: 31000mAh.
5. Rated capacity: 21000mAh (5V3A).
6. Battery energy: 3.7V/114.7Wh.
7. Battery type: Ternary lithium battery (46950) optional.
8. Emergency lighting: Two 0.5W 2835 patch lamp beads are equipped with two 15-degree PC lenses and a large area of EVA light-shielding cotton is embedded.
9. Product weight: 552g.
10. Dimensions: 50-50-125mm (length.width.height).
11. Operating temperature: -10℃~27℃ (Please use this product at room temperature).
12. Usage temperature description: After continuous charging for more than 2 hours, the surface temperature of the body is 40℃ and the interface temperature is 41.5℃.
13. Bidirectional output/input interface: USB-C1.
14. Output interface: USB-A.
15. USB-C1 output: 5V/3A, 9V/2.2A, 12V/1.5A (20W Max).
16. USB-C1 input: 5V/3A, 9V/2A, 12V/1.5A (18W Max).
17. USB-A output: 5V/3A, 9V/2A, 12V/1.5A (18W Max) (Under SCP protocol, 3~5V/25W).
18. Implementation standard: GB/T 35590-2017.
