Bistook Super Fast Charging Mobile Power Tesla 4680 Batteries,4680 Battery Powerbank

Description

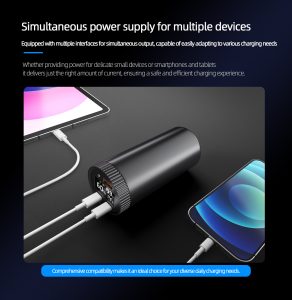

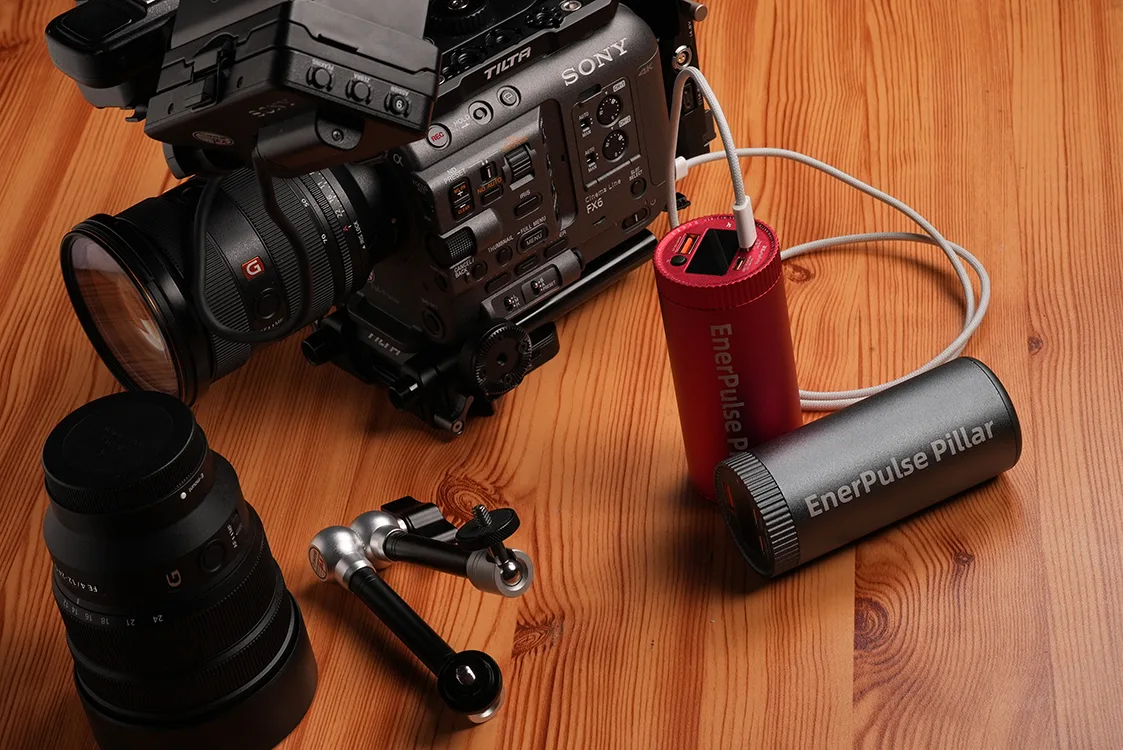

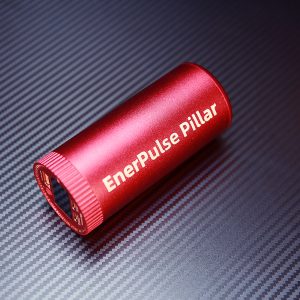

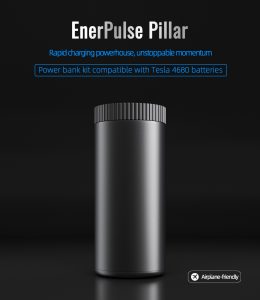

1、Overview of EnerPulse Pillar: Industry’s first with a peak power of 24W for both input and output, the “XiongMai EnerPulse Pillar” is a portable fast-charging mobile power source. Crafted with sandblasted anodized aluminum alloy, it is ideal for outdoor scenarios such as business trips, camping, travel, live streaming, and photography. Compatible with various devices like smartphones, tablets, and laptops, equipped with 2 USB-C ports and 1 USB-A port. The intelligent display screen provides clear visibility of the charging process, showing real-time voltage, current, and input-output status. The higher cost-performance battery makes it compact yet high-capacity. Tesla 4680 cells (25000mAh, 3.7V/92.5Wh) . EnerPulse Pillar, illuminating your life!

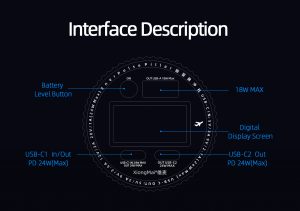

2、Interface Specification of EnerPulse Pillar:

• Bidirectional (input/output) interface: USB-C1
• Unidirectional (output) interface: USB-C2
• Unidirectional (output) interface: USB-A

3、Interface Power Specification of EnerPulse Pillar:

• USB-C1 input: 5V/3A 9V/2.67A 12V/2A 15V/1.6A 20V/1.2A  (24W Max)
• USB-C1 output: 5V/3A 9V/2.67A (24W Max)
• USB-C2 output: 5V/3A 9V/2.67A (24W Max)
• USB-A output: 5V/3A 9V/2A 12V/1.5A (18W Max) (SCP 3~5V/25W Max)

4、Product Features of EnerPulse Pillar:

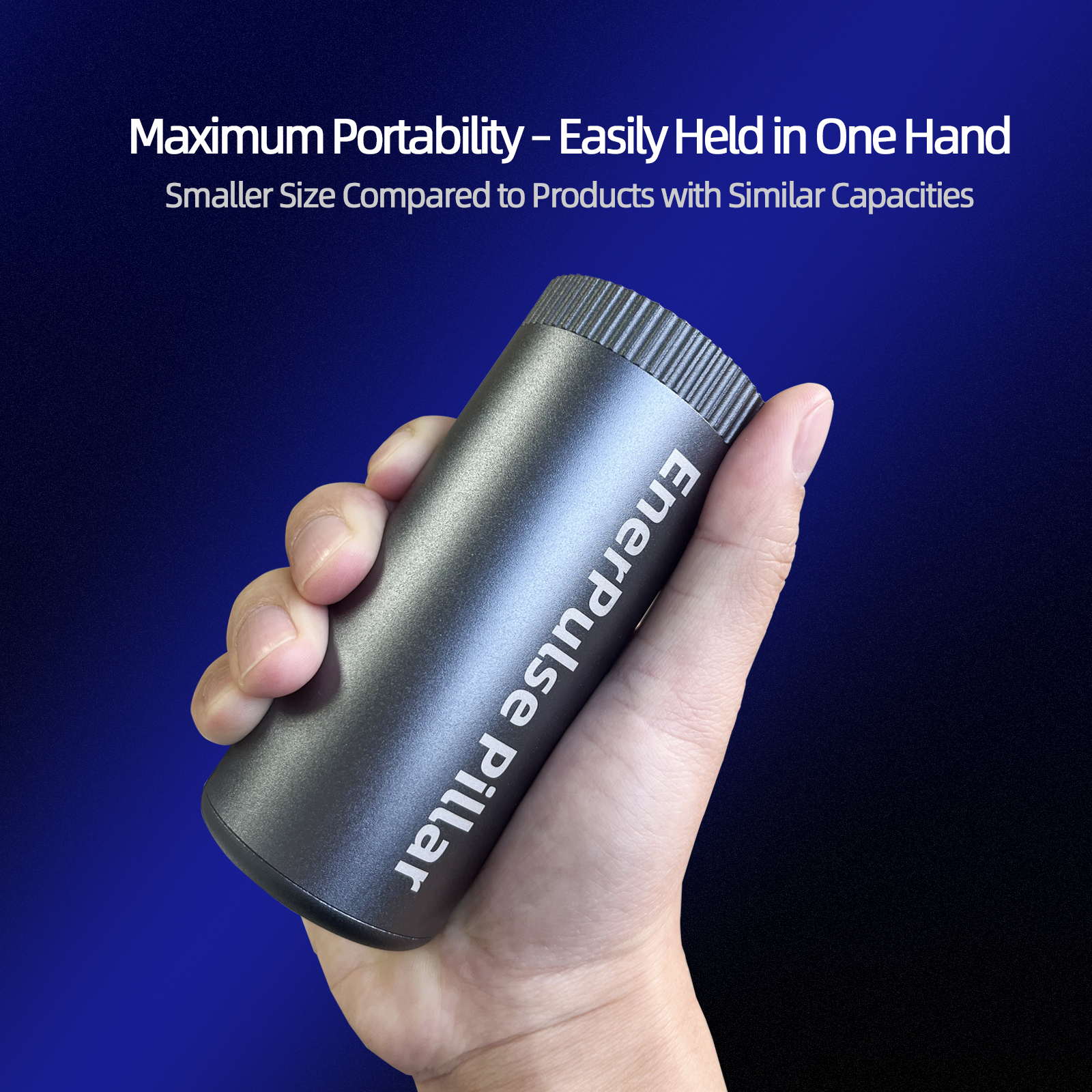

• 50% smaller volume, 20% higher power, 30% less heat compared to other brands.
• Three interfaces: USB-C1 supports bidirectional 24W (Max), USB-C2 supports 24W (Max) output, USB-A output port (18W Max) (SCP 3~5V/25W Max).

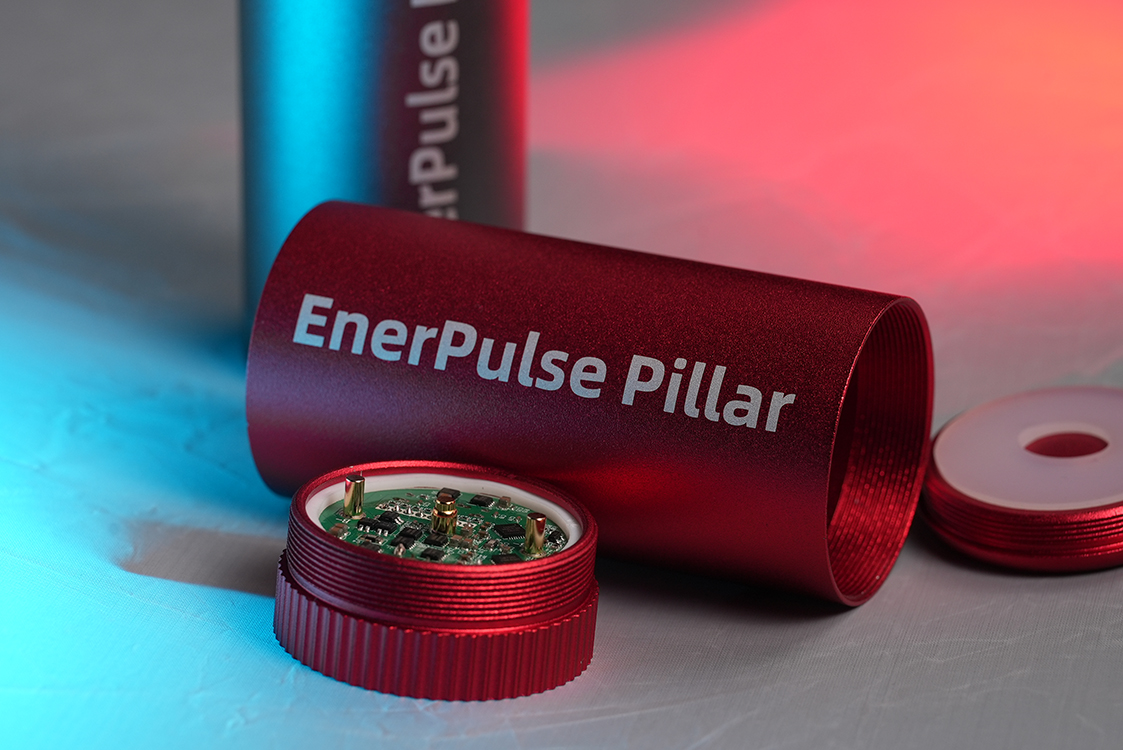

• Two M3 copper pillars for negative and one M3 spring pin for positive, all gold-plated, reducing the risk of poor contact.

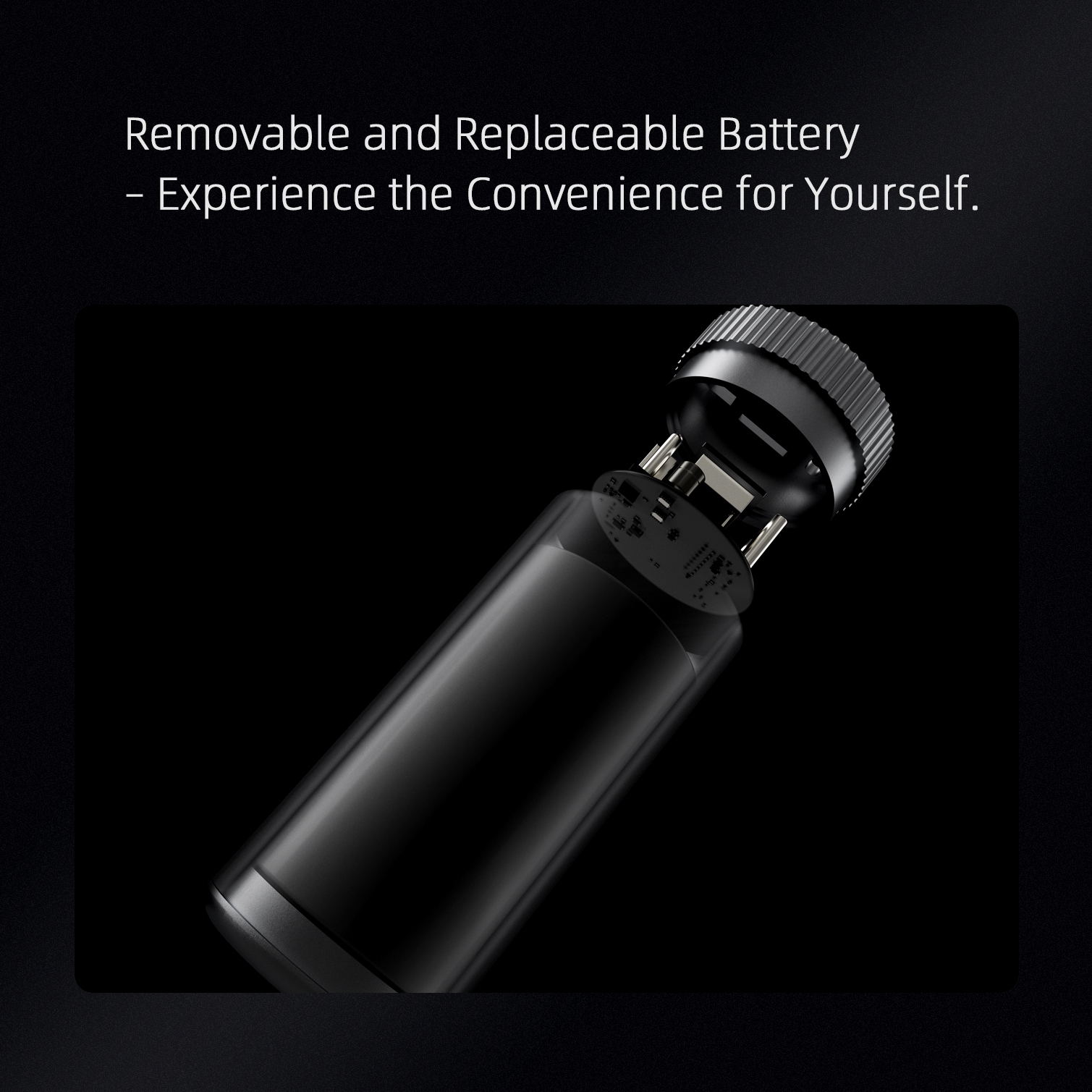

• Detachable structure for convenient battery replacement without welding or screws.

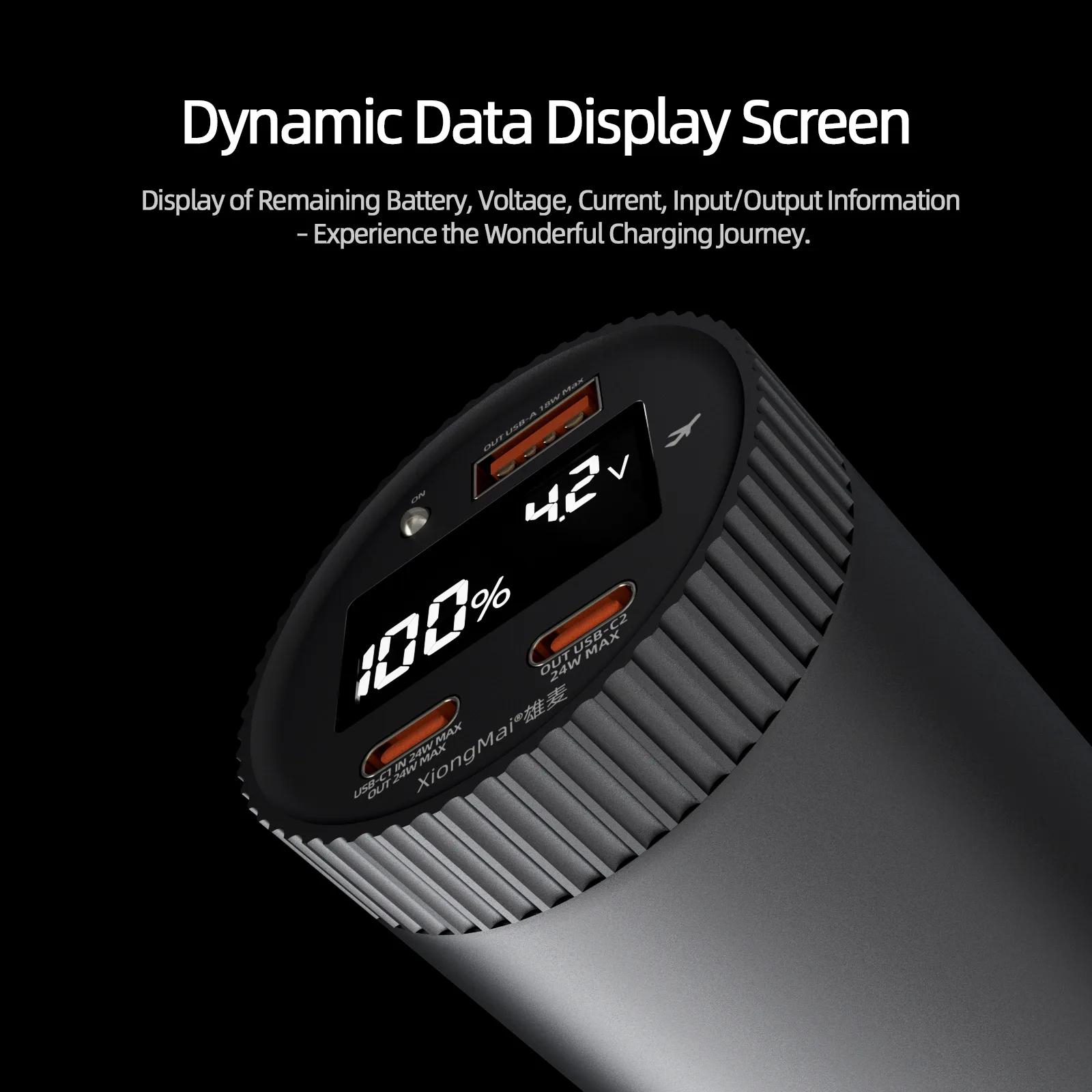

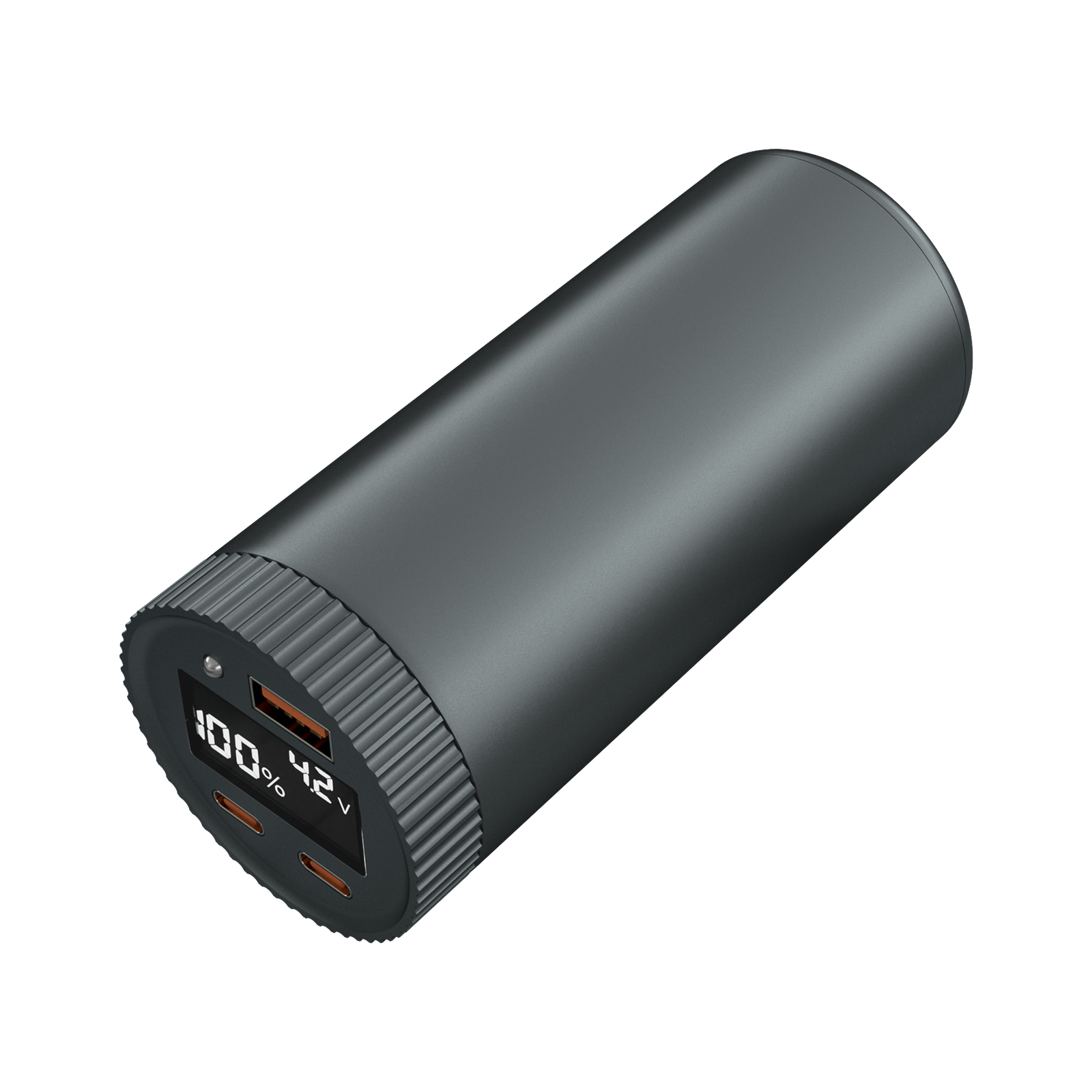

• Intelligent display screen shows real-time voltage, current, and clear identification of input-output.

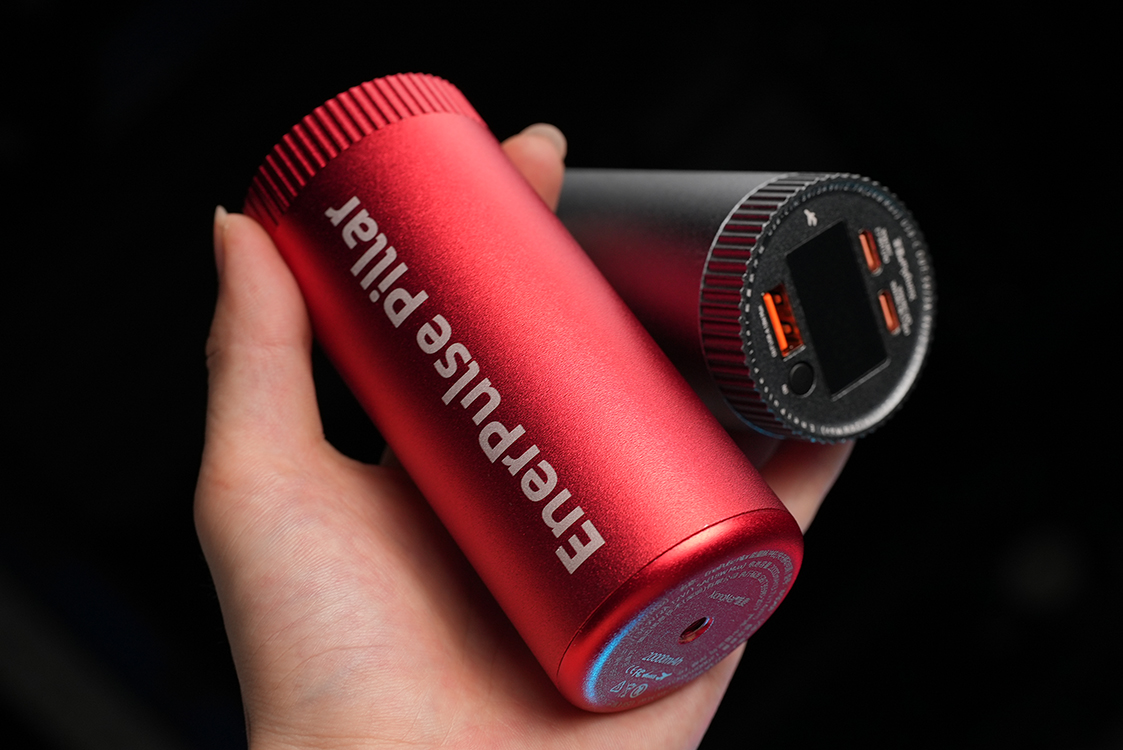

• International standard 1/4 universal hole at the bottom for mounting phones, cameras, gimbal brackets, etc.
• All-aluminum alloy shell for better heat dissipation and durability.
• Independent Coulomb counter for accurate battery management.
• Real-time voltage monitoring technology for precise and convenient battery monitoring.
• Integrated internal temperature monitoring for safer charging and discharging.
• Support for multiple protocols: PD/PPS/FIXED/AFC/FCP/QC/SCP, ensuring strong compatibility.
• Tested by relevant institutions with safety reports; laser-engraved, clear for airplane and high-speed rail travel.

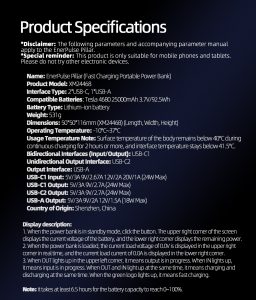

5、Product Parameters of EnerPulse Pillar:

• Name: EnerPulse Pillar Fast Charging Mobile Power
• Model: XM24468
• Interface Type: 2*USB-C, 1*USB-A
• Battery Capacity: 25000mAh
• Rated Capacity: 15000mAh (5V3A)
• Battery Energy: 3.7V/92.5Wh

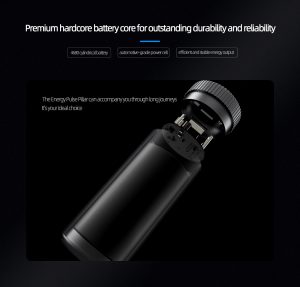

• Battery Type: Lithium-ion battery (4680)
• Product Weight: 531g

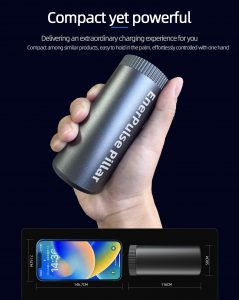

• Dimensions: 50*50*116mm（XM24468-4680）(L*W*H)
• Working Temperature: -10℃~27℃
• Usage Temperature Note: Surface temperature should not exceed 40℃ after continuous charging for 2 hours; interface temperature should not exceed 41.5℃.
• Bidirectional Interface: USB-C1
• Unidirectional Output Interface: USB-C2
• Output Interface: USB-A
• USB-C1 Input: 5V/3A 9V/2.67A 12V/2A 15V/1.6A 20V/1.2A (24W Max)
• USB-C1 Output: 5V/3A 9V/2.67A (24W Max)
• USB-C2 Output: 5V/3A 9V/2.67A (24W Max)
• USB-A Output: 5V/3A 9V/2A 12V/1.5A (18W Max)(SCP 3~5V/25W Max)
• Brand: Xiongmai Information Technology (Shenzhen) Co., Ltd.
• Sales Address: 6th floor, 604, Bozhi Center, Chentian Industrial Zone, Xixiang, Baoan District, Shenzhen, China
• Standard: GB/T 35590-2017
• Origin: Shenzhen, China
